Jiawo Electromechanical series

A manufacturer and exporter specializing in the production of high pressure cleaning machines and motors.

Current location: home >> Jiawo Electromechanical series

H225-355

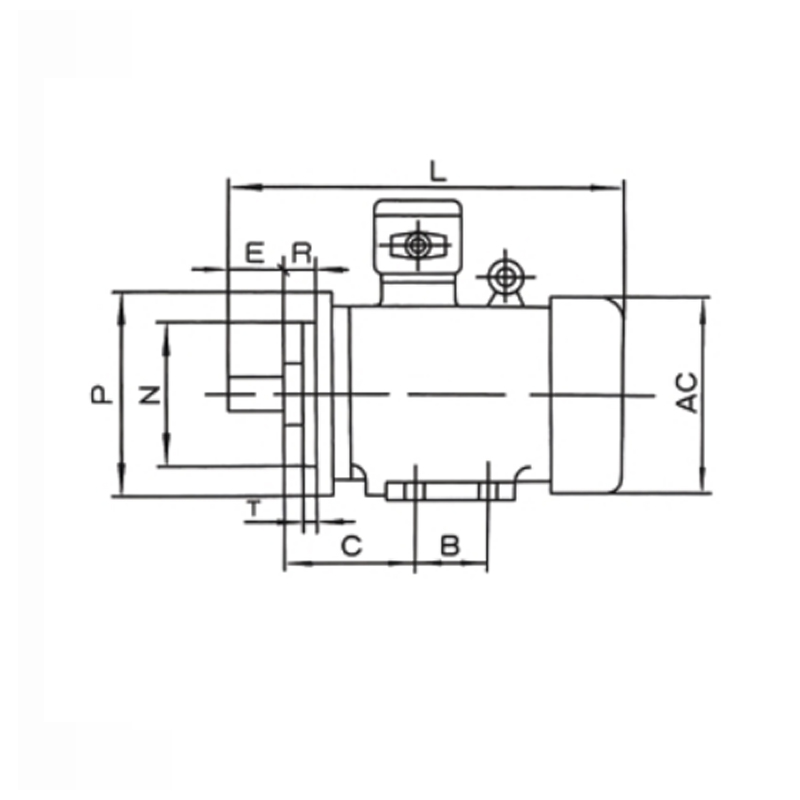

Motor (B35) with foot and flange on end cover (with through hole)

For more information, please send an email or call our hotline

jiawofanny@outlook.com

Product description

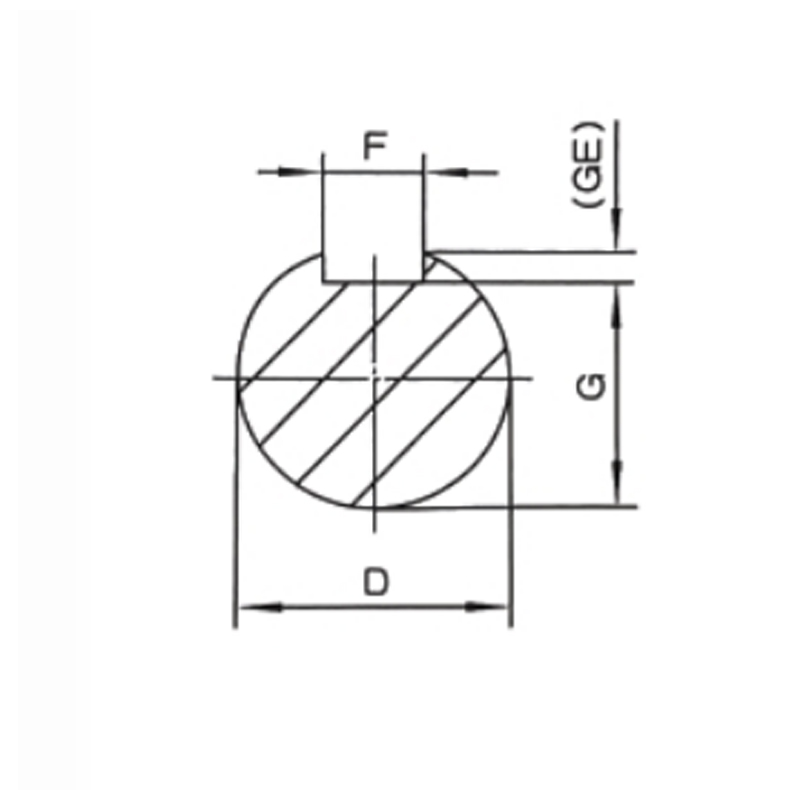

Frame	Ploes	A	B	C	D	E	F	G	H	K	M	N	Pmax	S	T	Holes	Inlet	AB	AC	AD	HD	L

80M	2.4	125	100	50	19	40	6	15.5	80	10	165	130	200	12	3.5	4	M30X2	160	170	180	300	330
90S	2.4.6.8	140		56	24	50	8	20	90									180	185		320	385
90L			125																			415
100L		160	140	63	28	60		24	100	12	215	180	250	14.5	4			200	210		355	456
112M		190		70					112									245	220	190	370	510
132S		216		89	38	80	10	33	132		265	230	300					280	270		420	528
132M			178																			568
160M	2.4.6.8.10.12	254	210	108	42	110	12	37	160	14.5	300	250	350	18.5	5		M36X2	330	320	202	490	706
160L			254																			735
180M		279	241	121	48		14	42.5	180	14.5								355	360		530	760
180L			279																			777
200L		318	305	133	55		16	49	200	18.5	350	300	400				M48X2	390	400	235	590	812
225S	4.8.10.12	356	286	149	60	140	18	53	225		400	350	450			8		435	450		635	865
225M	2		311		55	110	16	49														860
	4.6.8.10.12				60	140	18	53														888
250M	2	406	349	168					250	24	500	450	550				M64X2	490	500	270	720	948
	4.6.8.10.12				65			58
280S	2	457	368	190					280									545	550		780	1000
	4.6.8.10.12				75		20	67.5
280M	2		419		65		18	58														1035
	4.6.8.10.12				75		20	67.5
315S	2	508	406	216	65		18	58	315	28	600	550	660	24	6		2-φ70	630	620	320	910	1230
	4.6.8.10.12				80	170	22	71														1280
315M	2		457		65	140	18	58														1345
	4.6.8.10.12				80	170	22	71														1400
315L	2		508		65	140	18	58														1350
	4.6.8.10.12				80	170	22	71														1400
355S	2	610	500	254	75	140	20	67.5	355		740	680	800					750	740	320	1050	1385
	4.6.8.10.12				95	170	25	86														1410
355M	2		560		75	140	20	67.5														1481
	4.6.8.10.12				95	170	25	86														1512
355L	2		630		7	140	20	67.5														1572
	4.6.8.10.12				95	170	25	86														1600
